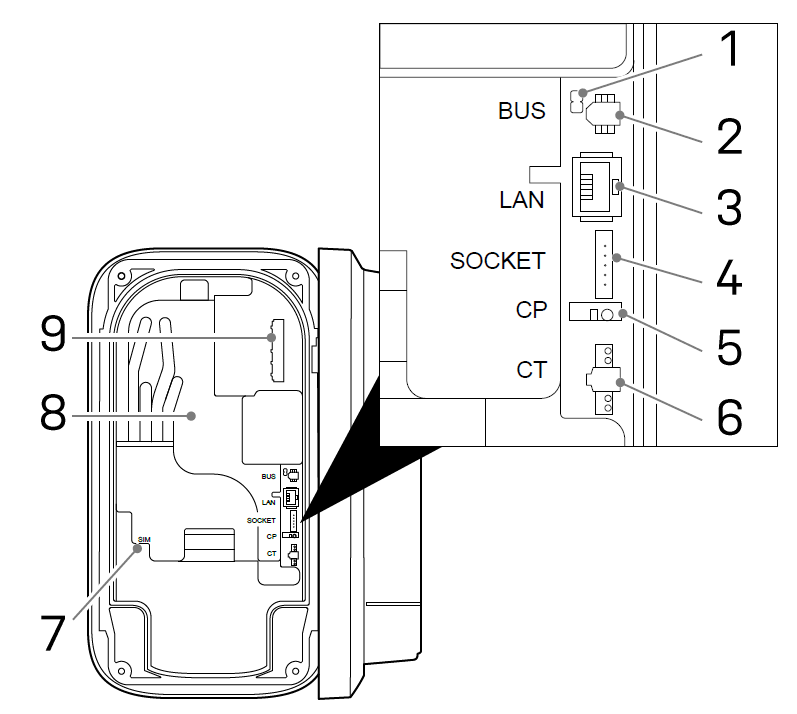

Figure 1 Connector information
Table 1 Connector information
| Number | Connector | Purpose |
| 1 | BUS Termination jumper* | To be used in the case of group load balancing over RS-485. |
| 2 | BUS connector* | To be used in the case of group load balancing over RS-485. And to be used for connecting modbus RTU meters |
| 3 | Ethernet connector* | To be used for connecting the charger to a network, switch or another charger for group load balancing. |
| 4 | Socket connector* | To be used for connecting the socket control wires to the PCB. |
| 5 | Control pilot connector* | To be used for connecting the CP wire from the charging cable to the PCB. |
| 6 | CT coils connector* | To be used for connecting the CT coil wires to the PCB. |
| 7 | SIM card holder* | To be used for connecting the charger to an LTE network. |
| 8 | Energy meter accuracy LED* | To be used for indicating the power consumption of the charger. |
| 9 | Mains connector | To be used to power the charger. |
